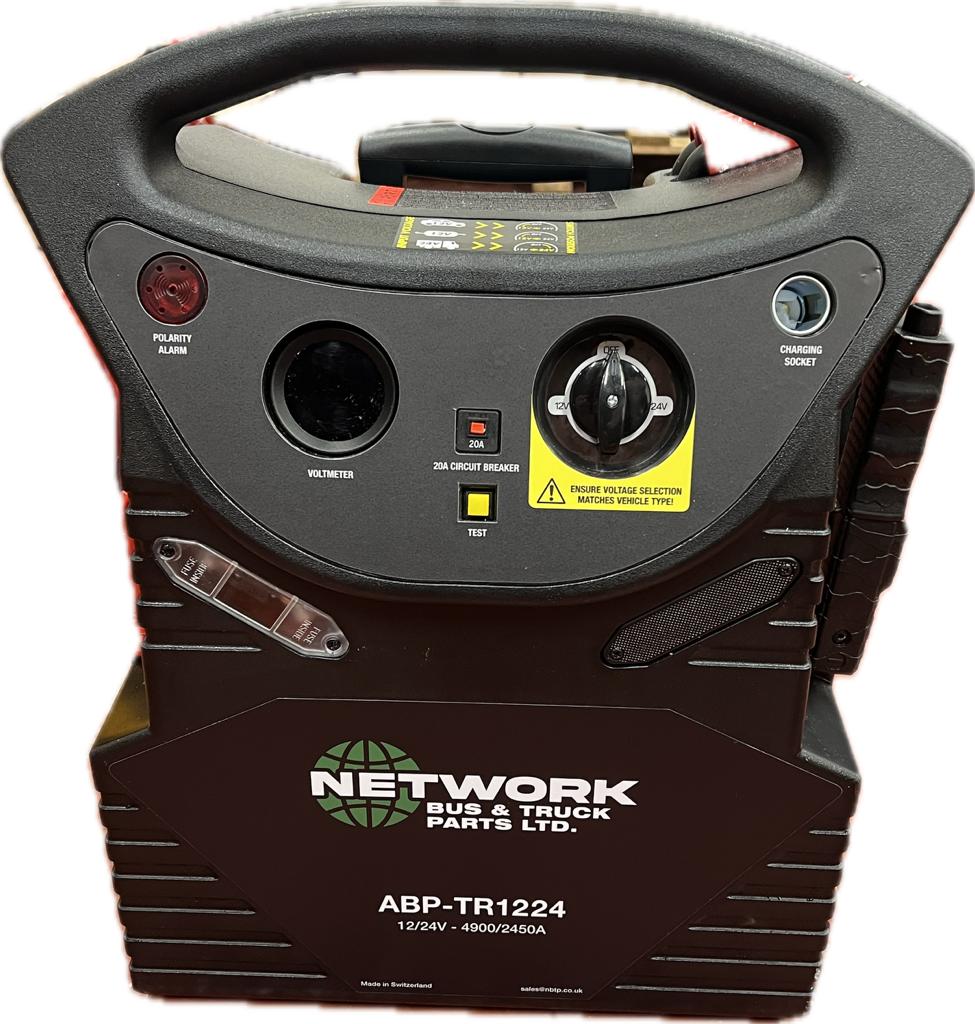

NEW BATTERY BOOST PACK ABPTR1224

We're currently working to facilitate online orders. If you want to order this part please email sales@nbtp.co.uk or call 07450 203 840 and speak to Ben.

The ABPTR 12/24 battery jump start pack from Alliance Transport Technologies has been specifically designed for numerous start-ups of large commercial vehicles. The battery boost packs are fitted with high-capacity batteries, resulting in high cranking capabilities. The large power output ensures peak performance under key maintenance operations, such as fuel bleeding, oil pressure build-up, tail-life cycling as well recurrent engine starting.

The ABPTR-1224 is fitted with 2 x PC1100 Enersys lead batteries. A standard Anderson Connector is used on each pack and voltage can be switched between 12, 24V and off. Using the three-way voltage dials avoids shortage and contact welding that may occur with traditional on/off isolator switches. Industrial croc clips with a built-in 1000A safety fuse reduces the likelihood of voltage loss. Storage holders on the reverse of the unit allow for safe storage of cables when not in use.

The pack is fitted with a digital voltmeter to display the available life of the batteries. This can also be used to test the alternator voltage output. In addition, the units are fitted with an anti-surge PCB board to avoid any power surges.

With the pack firmly on the ground, an engine is easily reachable with large output cables included. The pack also has a built-in trolley, making it easy to move around large sites.

The pack comes with a 7.0A premium external smart charger that can also recharge and maintain external batteries.

Typical Engines

Petrol – All

Diesel – Up To 18 Litres

Specification

• High-capacity Enersys PC1100 lead batteries
• 3-point voltage switch to avoid contact welding and breakage
• Digital voltmeter to display battery life and voltage of the alternator
• The charger also acts as an external battery charger
• Anti-surge PCB board to avoid spikes
• 1000 Amp safety fuses
• Durable plastic case
• Built in trolley
• Reverse polarity alarm

Features

• Peak Amps – 2450A
• Nominal Voltage – 12/24V DC
• Standing Voltage – 12.8V/25.6V DC
• Amp/Hour Capacity – 45/45 Ah @10hr date (20ºc)
• Fuse Rating – 1000A
• Operating Temperature – -40ºc to +45ºc
• Case – ABS Sock Resistant Plastic Casing
• Charger – Premium 7Ah External Smart Charger
• Weight – Approx. 37kg
• Dimensions – 38w x 51h x 15d (cm)

Prices are POA - Please call/email for more information.
